水面主动无人救援艇 / Water lnitiatiive unmanned Surface Vehicle

设计概述

水上主动救援艇优势是在不适合载人船艇或者危险清况下执行任务。相比于其它无人驾驶运   载工具，只有水上主动救援艇(USV)可以在水上、水面和水下环境中同时发挥作用，且水上主动救援艇具有智能化、模块化、体积小、 无入高速机动灵活适应各种气候环境性价比高等优势，不难看出海面无人艇将在海洋的探索和海上搜救工作中起到不可忽视的作用。

Product Introduction

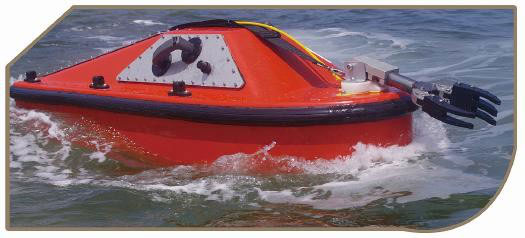

The advantage of unmanned Surface Vehicle(USV) is that they can carry out tasks in the conditions of not suitable for manned boats or in dangerous conditions. Compared with other unmanned vehicles, only the USV can play a role in the water, surface and underwater environment at the same time, and the USV has the advantages of intelligence, modularization, small size, high-speed maneuverability and flexibility to adapt to various climate and  environment with high cost performance. It is not difficult to seel that the USV will play an important role in the ocean exploration and maritime search and rescue work.

应用场景

海事局海上救援

application scenarios Maritime rescue

技术参数

尺寸：1300mmx400mmx380mm 重量：双推 60kg 单推 35kg

功率：双推 2000W 单推 1000W 速度：双推 9-10m/s 单推 6-7m/s 控制：遥控距离 400m

材料：优质玻璃钢，耐腐蚀，海水淡水中均可使用 抓取力：30kg

机械手关节：2 动作机械手，可自动分离水上拖曳力：20kg

控制方式：采用双通道遥控模式 1)遥控操作 2)人控操作

Technical parameters

Size: 1300mmx400mmx380mm

Weight: double push 60kg single push 35kg Power: double push 2000W, single push 1000W

Speed: double push 9-10m / s, single push 6-7m / s Control: Remote control distance 400m

Material: High quality fiberglass, corrosion resistant, can be used in seawater and fresh water

Grip: 30kg

Manipulator joint: 2 action manipulator, automatic separation Drag force on water: 20kg

Control mode: double channel remote control mode 1) remote control operation 2) human control operation
