深海探矿采矿机器人 / Deep Sea Exploration and Mining ROV

产品概述与突破 Product overview and breakthrough

公司率先研发并成功出口一套日产500 吨级海底采矿机器人，用于俄罗斯波罗的海海底琥珀开采作业。产品采用公司独创的过滤采矿分拣技术，实现采矿和分拣过程一次完成，运行高效稳定。成为世界上首台成功商用的海底过滤采矿机器人。

The company lead in developing and successfully exporting a set of seabed mining robots with a daily output of 500 tons, which are used in the submarine amber mining operation in the Baltic Sea of Russia. The product adopts the company's original filtering mining sorting technology to realize the one-time completion of mining and sorting process, and the operation is efficient and stable. This is the first successful commercial subsea filtering mining robot in the world.

应用领域 Application

深海吸油水下施工水下勘探、 深海采矿、 深海挖掘、 深海采样、 水下沉船工程作业、 疏通水下工程。

Deep sea oil absorption underwater construction underwater exploration, deep sea mining, deep sea excavation, deep sea sampling, underwater shipwreck engineering operation, dredging underwater engineering.

应用场景：Application

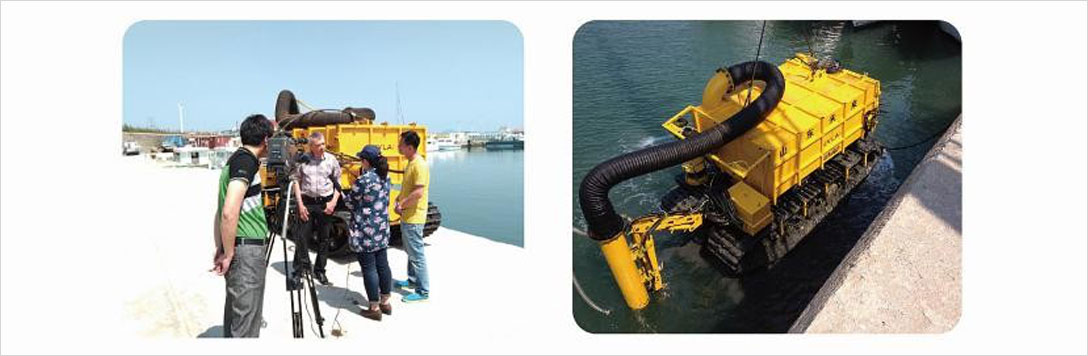

俄罗斯客户海上验收 Russian customer offshore acceptance

技术参数 Specification

尺寸重量：6000mm*1950mm* 2500mm, 5T Size&weight:6000mm*1950mm* 2500mm, 5T

驱动系统：整体采用液压驱动；

Driving system:Whole hydraulic driven

观测系统：采用高清浑水网络摄像机， 图像清晰、细腻，最低照度 0.001Lux, 可彩色黑白相互切换，

Observation system: Using high-definition muddy water network camera, the image is clear and delicate,lowest illumination is 0.001lux, and color black and white can switch each other

照明系统：装有 3*180W LED 灯，3*100W LED 灯

Lighting system: Equipped with 3*180W LED lights, 3*100W LED lights

缆控系统：采用船用机器人吊架，采用 500 米液压收线电缆绞车

Cable winch system: Using Marine robot hanger, using 500 meters hydraulic cable retract winch

甲板单元：15 处理器，硬盘容量 1T, 128GB SSD 固态硬盘；防水机箱设计；工业级控制手柄； 视频叠加功能；

Deck unit: 15 processor,1T hard disk capacity, 128GB SSD solid-state hard disk; waterproof case design; industrial level control handle; video&text overlay function;

作业能力：600m-3000m(可定制），5-26m/min(可定制）；

Operation capacity: 600m-3000m (customizable), 5-26m/min (customizable)

传感系统：三维电子罗盘、温度度传感器、压力传感器

Sensors:Three - dimensional electronic compass ,temperature sensor, pressure sensor

优势特点: 2 台大功率水下吸泥泵，口径：250mm; 2 轴液压不锈钢机械臂伸展长度 2500mm; Advantages and features: 2 sets of high-power underwater dredge pump, 250mm caliber; 2-axis hydraulic stainless steel mechanical arm extension length 2500mm
